vacuum press machine silicone film

Short Description:

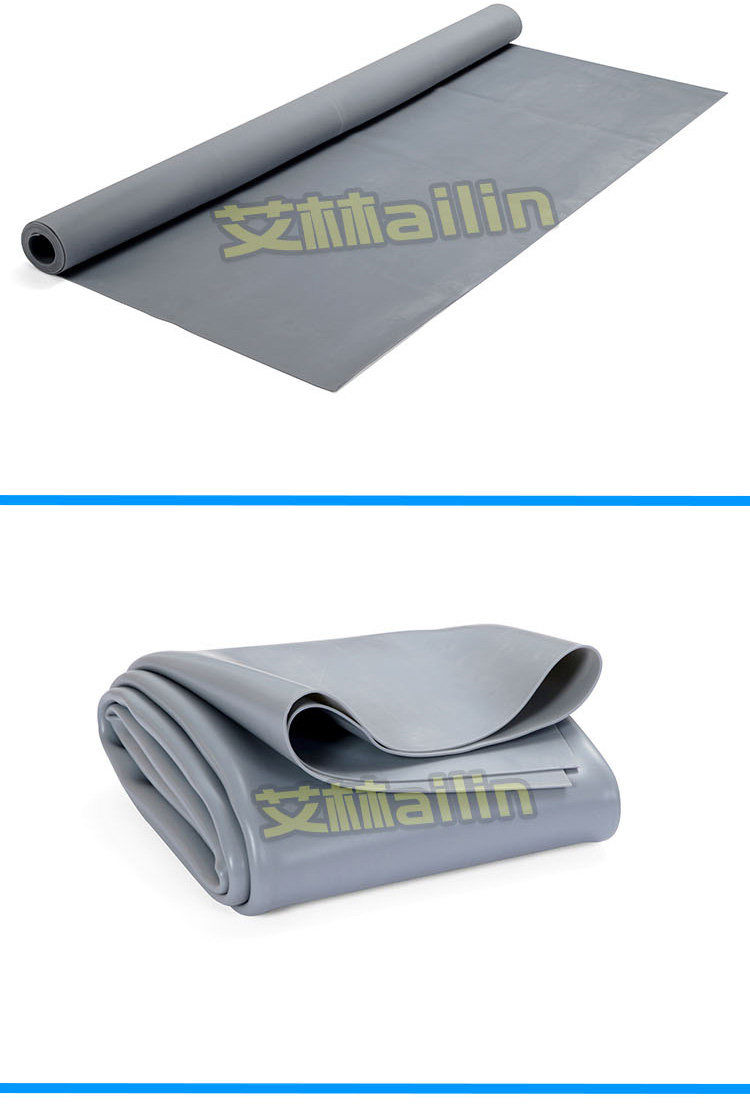

Vacuum press machine silicon film, also known as vacuum press machine silicone membrane, is a type of silicone rubber material used in the vacuum forming process. It is a highly elastic and durable material that is specifically designed to withstand high temperatures and pressure during the vacuum f…

CONTACT NOW

Details

Vacuum press machines are commonly used in industries such as woodworking, plastics, and automotive to create 3D shapes from flat sheets of material. The process involves heating the sheet material until it becomes soft and pliable, then placing it over a mold and using a vacuum to suck the material down onto the mold to create the desired shape.

Size problem: regular size has
1750mm width*3050mm length*3mm thickness
1750mm width*3450mm length*3mm thickness
1750mm width*3600mm length*3mm thickness
1750mm width*3800mm length*3mm thickness
Other special sizes can be customized

Technical Parameters:

Hardness A:	50°±5°	tensile strength:	>10MP
Elongation:	>800%	Tear Strength:	>41N/mm
Permanent deformation:	<6%	elasticity:	>43kgf/mm
Temperature resistance:	250°	density:	1.141g/cubic centimeter
Temperature resistance:		250°

Form: There are two sides (positive and negative), one is smooth and the other is fine frosted.

Service life: more than 3000 pressings for one use (excluding repairs).

Advantages: use non-stick board with fine frosted surface, which can be switched between two sides, non-stick board, strong air permeability, PVC does not suffer from oil marks and water marks.

High temperature resistance: high pressure resistance, excellent thermal conductivity.

Tear resistance: Effectively solve the problem of easy tearing of conventional silicone skins.

Puncture resistance: high service life, higher enhanced puncture resistance

Good performance: non-toxic, tasteless and pollution-free, inert and non-stick on the surface

Mainly applicable to: home industry, furniture industry, home customization, cabinet door panels, wardrobe door panels, drawer door panels, etc. As shown below:
